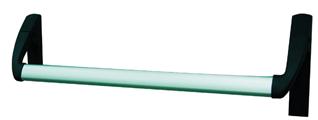

Panic Bar for Single Leaf Door and for the Main Leaf of the Double Leaf Door. Necessary Door Lock is NOT Included.
General info for Fire Doors
Fire Doors 60 or 120min, Certified According to the New European Standard EN 1634-1, Single or Double Leaf. The Tests for the Certification of the Fire Doors were performed by CSI an International Accredited Body for this Sector.
Technical Details and Specification
- Total Door Leaf Thickness 60mm, the External Leaf is Manufactured by Double Steel Sheet 0.8mm, while the Internal Content is of a very Dense Layer of Anti-Flammable Material
- Frame is made from 1.5mm Steel Sheet
- Lock with Key
- Black Safety Knob
- Double Hinges per Leaf, one of which has a spring in order to set the rollback of the Door
- Reinforced Plates in order to Adjust a Panic Bar (optional)
- 28mm Sealing Rubber Thermo Expanding for additional sealing of the Space on Fire
- Metal Label Indicating the Certification of the Door
- Water Based Eco – Coated, Standard Color RAL 7035 Light Grey
Characteristics & Details
35 Kg/m2 Weight for 60’ Doors and 45 Kg/m2 for 120’ Doors every door comes with installation instructions and certificate the appeared dimensions are fitment dimensions ( from wall to wall).
NOTICE
After special order Fire Doors are also available in other dimensions, colors, accessories etc.
For more information contact export department
